Product Details

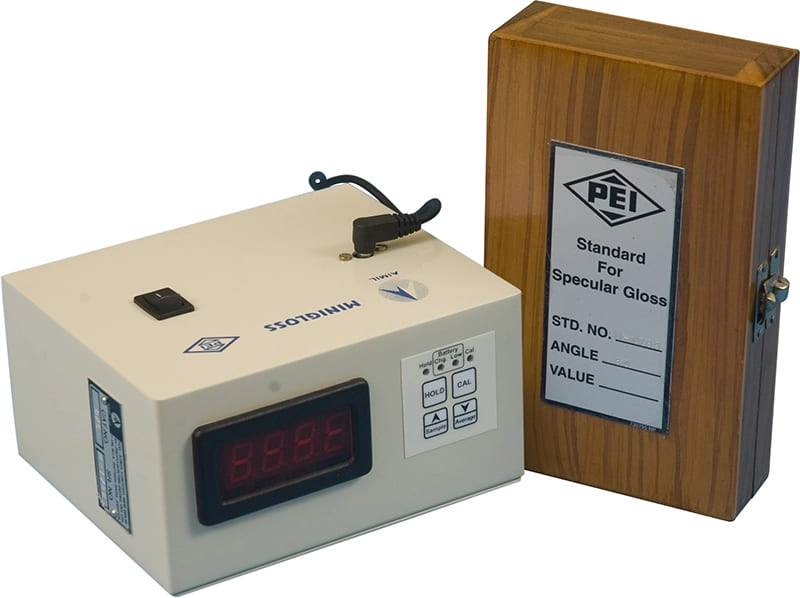

Aimil Portable Gloss Meter

  • Product ID:
  • Category: Photo Electric Instruments

 Principle:



Gloss of the surface is the ratio of light reflected from the surface of the sample to the light incident on it, when the angle of incidence and Reflectance are equal numerically but opposite in sign i.e. Gloss is a measure of how well the surface functions as a mirror. Gloss increases as the sample of incidence increases. The unit is light weight and with a inbuilt measuring head having integral read-out unit, with controls for setting the value of standards and holding the displayed value. In addition, there is an averaging facility to allow for surface variations













  • Description
  • Specifications
  • Download

 Glossmeter Software allows user to:

1. Save readings for internal records

2. Graphically analyse the stored readings

3. Exclude the erroneous readings from the records and reanalyse the readings.

4. Compare individual batches of Data.

5. Export Data in .txt, .csv, .xls formats.

  Specifications

Accuracy

± 1 Gloss Unit

Repeatability

± 0.5 Gloss Unit

LCD Display

20x4 Alphanumeric Display

Resolution

0.1 GU

Memory

7500 Readings

Communications

RS232

Light Source

LED (Long lasting and stable)

Detector

Sealed Silicon Photocell

Power

NiMH Rechargeable battery pack with external charger

Software

Maximum Value, Minimum Value, Standard Deviation, Average and Coefficient of Variance can be calculated through software, View Graphs

Accessories Supplied

Calibrated Standard (Hi and Low) and Matt Plate + Charger

Language

English

Dimensions

150 x80 x115 mm

Weight

850Gms
