Product Details

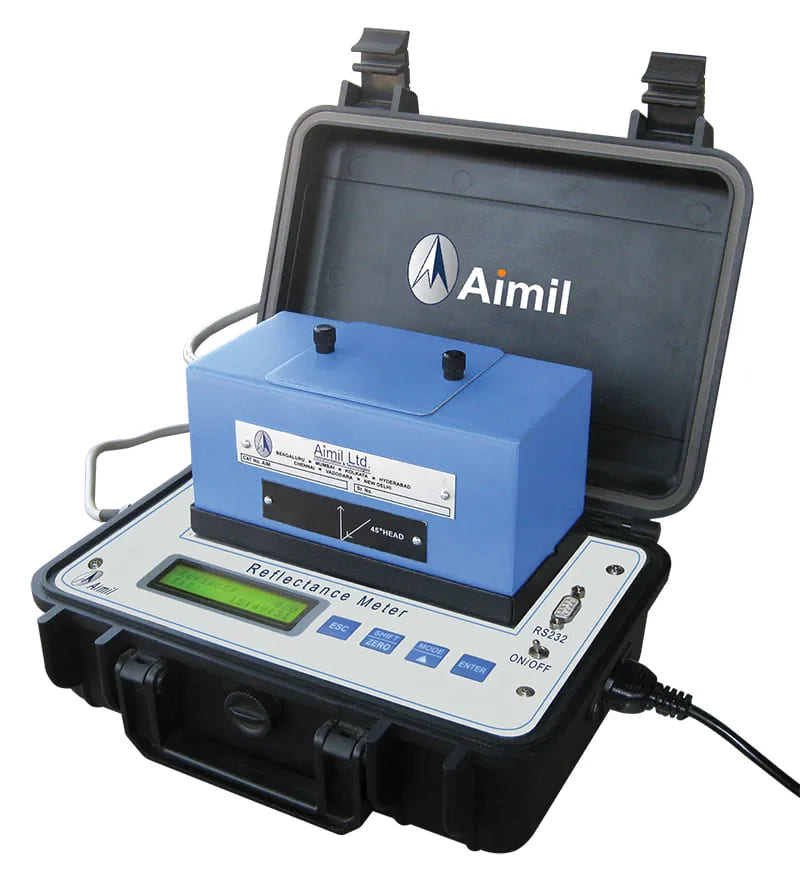

Aimil Reflectance Meter

  • Product ID:
  • Category: Photo Electric Instruments



Salient Features:

  • Ideal for measuring whiteness & brightness

  • Can be used to measure both whiteness & brightness by changing filters only

  • Standard MgCO3 block supplied with the instrument

  • Simple to operate



Applications:

  • Paper

  • Textile

  • Food items

  • Pigments

  • Tiles

  • Minerals

  • Powder



  • Description
  • Specifications
  • Download



Salient Features:

  • Ideal for measuring whiteness & brightness

  • Can be used to measure both whiteness & brightness by changing filters only

  • Standard MgCO3 block supplied with the instrument

  • Simple to operate



Applications:

  • Paper

  • Textile

  • Food items

  • Pigments

  • Tiles

  • Minerals

  • Powder

Specifications of Reflectance Meter



Light Source

Long Life LED

Detector

Sealed Silicon Photo Detector

Diffuse Reflectance

00.0 to 100.0 with negative and over range indication

Accuracy

(±0.2%)



Accessories

MgCO3 Block as secondary standard, powder trays, presser plates, manual plate for MgO depositions, Mg wire

Dimensions

24x16x9 cms

Weight (Net)

2 Kg 500 gms

Operating Voltage

230 volts, 50Hz

Display

16x2 Alphanumeric LCD display

Memory

7500 Readings

Communication

RS 232





Ordering Information

          Cat No

                          Description

AIM 072000 TBF

Reflectance Meter with Blue filter for Brightness Measurement

AIM 072000 TGF

Reflectance meter with Green filter forWhiteness measurement

Optional

AIM 072111

Green Tristimulus filter

AIM 072112

Blue Tristimulus Filter

AIM 072113

Red Tristimulus Filter

AIM 072114

Brightness Filter (49)

AIM 072115

Calibrated Standard Tile in a box
