Product Details

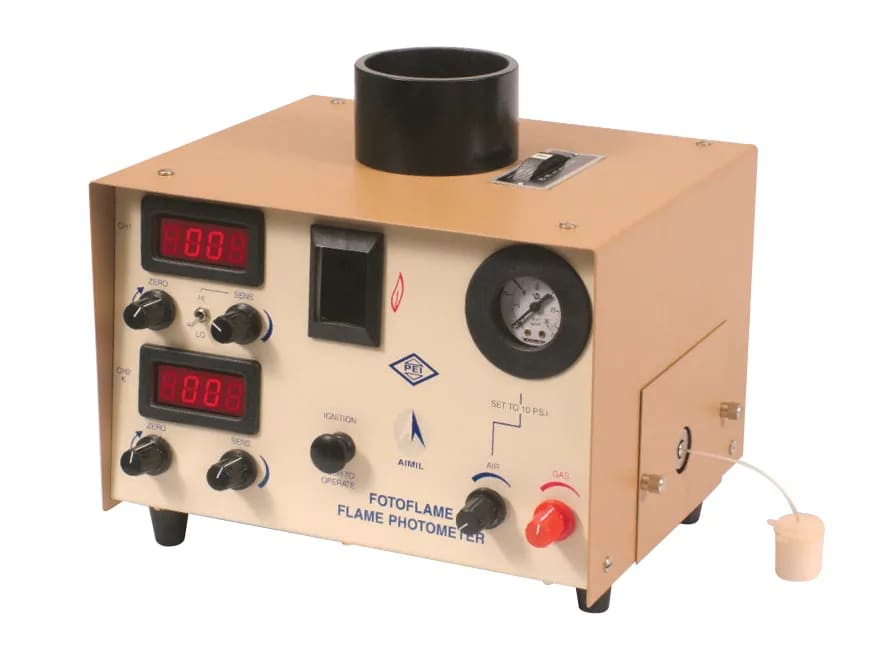

Flame Photometer Dual Channel
- Product ID:
- Category: Photo Electric Instruments
A solution of the salt is aspirated into the LPG-AIR flame. The vapour takes up energy from the flame and emits the wavelength characteristic colour of the element being tested. The intensity of emitted light is proportional to the concentration of the metal ion in the solution. This light is measured through a filter/detector/ amplifier combination. This being a comparator, known standard solutions are to be used for calibration.
Applications :
· Agriculture
· Cement
· Chemicals
· Fertilizer
· Geology
· Biochemistry
· Ceramics
· Oil Refining
· Food & Dairy Industry
· Horticulture
A solution of the salt is aspirated into the LPG-AIR flame. The vapour takes up energy from the flame and emits the wavelength characteristic colour of the element being tested. The intensity of emitted light is proportional to the concentration of the metal ion in the solution. This light is measured through a filter/detector/ amplifier combination. This being a comparator, known standard solutions are to be used for calibration. Compact Ease of Operation Mains Operated Large Bright LED Digital Display Rapid and accurate determination of Na, K, Ca & Li Compressor with Stable pressure output
Ordering Information:
AIM 049000 - Digital Dual Channel Flame Photometer with Sodium and Potassium filters and oil free diaphragm type compressor.
AIM 040103 - Lithium Filter 12.7 mm dia
AIM 040104 - Calcium Filter 12.7 mm dia
|
Filters |
Narrow band-pass interference filters for Sodium, Potassium, Calcium |
||
|
|
and Lithium available. |
|
|
|
Detector |
Hermetically sealed Silicon Photo Detector |
|
|
|
Power Supply |
Full IC Regulated Power supply to take care of mains variation of voltages |
||
|
|
between 200 to 250V |
|
|
|
Amplifier |
Highly stable, High Gain all IC amplifier |
|
|
|
Display |
Large, Bright Seven Segment LED Panel meter to display 0-100 scale with |
||
|
|
negative and over range indication. |
|
|
|
Sensitivity |
"Na" 4 ppm and "K" 2 ppm FSD Standard |
|
|
|
|
"Na" 2 ppm and "K" 1 ppm available at no extra cost on prior request. |
||
|
Compressor |
Oil free, diaphragm type with air reservoir. 90W motor, fuse protected complete |
||
|
|
with accessories. Stable pressure for mains fluctuations between 200V to 250V. |
||
|
Atomiser |
Non-corroding, easily accessible and can be cleaned without putting out the flame. |
||
|
Sample Take-up-rate |
5ml/min approximately |
|
|
|
Flame |
LPG cylinder required with regulator (To be arranged by user) |
||
|
Nominal Input voltage |
220V, 50Hz Single Phase |
|
|
|
Dimensions |
Flame Photometer |
Compressor |
|
|
|
28X23X20cm |
25.5 X20X23cm |
|
|
Packing Dimensions |
60X45X45cm |
|
|
|
Nett Weight |
6.5 Kg. |
9.1Kg |
|
|
Gross Weight |
20 Kg.Approx |
|
|
