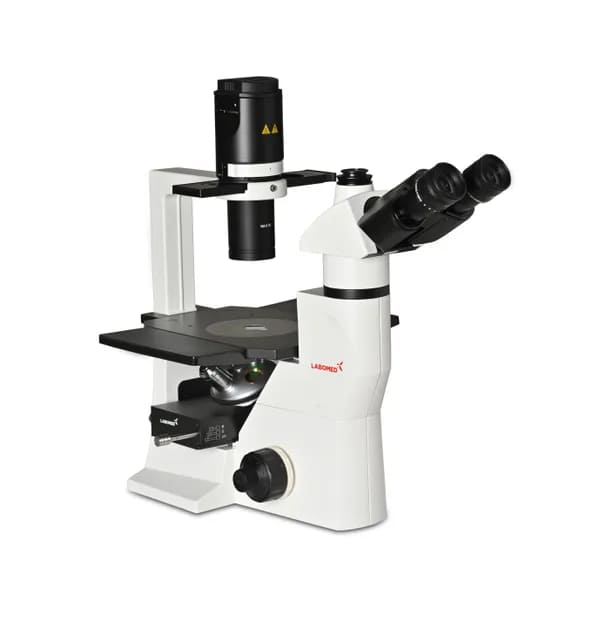

Labomed Inverted Microscope TCM 400
Labomed Inverted Microscope TCM 400

Labomed Inverted Microscope TCM 400

  • Product ID:
  • Category: Microscope

Cell culture, In Vitro Fertilization (IVF), and fluorescence stains are viewed in high fidelity with the TCM 400. A host of optional accessories make the system modular and versatile. High-performance optics configured in a durable, compact footprint make the TCM 400 inverted microscope ideal for clinical needs.



  • Description
  • Specifications
  • Download

Cell culture, In Vitro Fertilization (IVF), and fluorescence stains are viewed in high fidelity with the TCM 400. A host of optional accessories make the system modular and versatile. High-performance optics configured in a durable, compact footprint make the TCM 400 inverted microscope ideal for clinical needs.

  •




  • Illumination

    Transmitted Illumination system 6v30w Halogen with intensity control. Up to 500 hours of Halogen lamp life.

  • Viewing Body

    Binocular, Trinocular 30° and Ergonomic Tiltable Binocular tube (0°-25°), IPD 52-75mm

  • Focusing

    Coaxial coarse and fine focusing mechanism. Fine focus graduation 2.0μm

  • Optional Accessories



  • Pointers & Micrometer Reticules
  • Phase and Fluorescence Kits
  • Auxiliary Objectives and Eyepieces
  • Digital Cameras and Adapters
  • Soft Carrying Case



  • Mechanical Stage

    Fixed plain stage 160mm x 240mm

  • Stand

    Ergonomically designed sturdy stand (aluminum die-cast)

  • Condenser

    Long working distance Condenser NA 0.30, suitable for Phase contrast/BF with Phase contrast slider and telescope, Green and Blue filters. Specimen holders include 35mm Petri dish holder and two dish/sample holders (only with optional mechanical stage)

  • Electronics

    Universal power supply (110V-240V) with built-in voltage stabilizer

  • Eyepiece

    Widefield 10x/22mm eyepieces with rubber eyeguards, antifungal coatings

  • Nosepiece

    Quadruple reverse angle turret (Ball bearing type) with rubber grip

  • Objective

    LW series Long working distance DIN Phase Plan Achromatic objectives 4x, 10x and 20x, antifungal coatings
