pH Meter LMPH10
pH Meter LMPH10

pH Meter LMPH10

  • Product ID:
  • Category: Electrochemistry Instruments

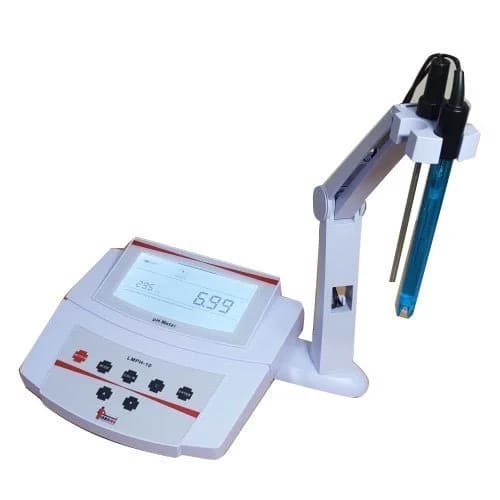

LMPH10 is an easy to use pH meter designed for daily testing and controls as required. The meter has a clear and bright backlight LCD display that shows the measured value, mode indicators and help messages.



  • Description
  • Specifications
  • Download

SALIENT FEATURES:

  • Large backlight LCD display shows mode indicators and help messages
  • Upto 3 points push button calibration with auto buffer recognition
  • Selectable pH buffer standards and temperaature units.
  • Automatically calculates and displays electrode slope after calibration
  • Automatic Temperature Compensation (ATC) ensures highly accurate measurements over the entire range
  • Automatic endpoint function freezes the stable measured values.
  • Help messages as an operational guide to help one understand how to use the meter
  • Set up menu helps the user customize buffer standards, calibration points, temperature units, automatic or manual and auto off feature to meet personal preferences
  • Reset function can return all settings to factory default values



MODEL
LMPH10
pH
Make
LABMAN
Range
-2.00 to 16.00 pH
pH Resolution
0.01 pH
Accuracy
± 0.01 pH
Calibration Points
up to3 points
pH Buffer options
USA (pH4.01, 7.00, 10.01) or NIST (pH4.01, 6.86, 9.18)
mV
mV Range
± 1999 mV
Accuracy
± 1 mV
Resolution
1mV
Temperature
Range
0 to 105 °C
Accuracy
± 0.5°C
Resolution
0.1°C
Temp. Compensation
0~100°C, Manual / Automatic
General
Hold Function
Available
Auto Off Function
Available
Connector
BNC
Display
LCD (135× 75mm)
Power Requirements
DC9V, using AC adapters, 220VAC/50Hz
Dimensions ( Lx W x H)
210 × 205 × 75 mm
Packing Box Size
300 x 250 x 175 mm
Weight
1.5 kg
