Product Details

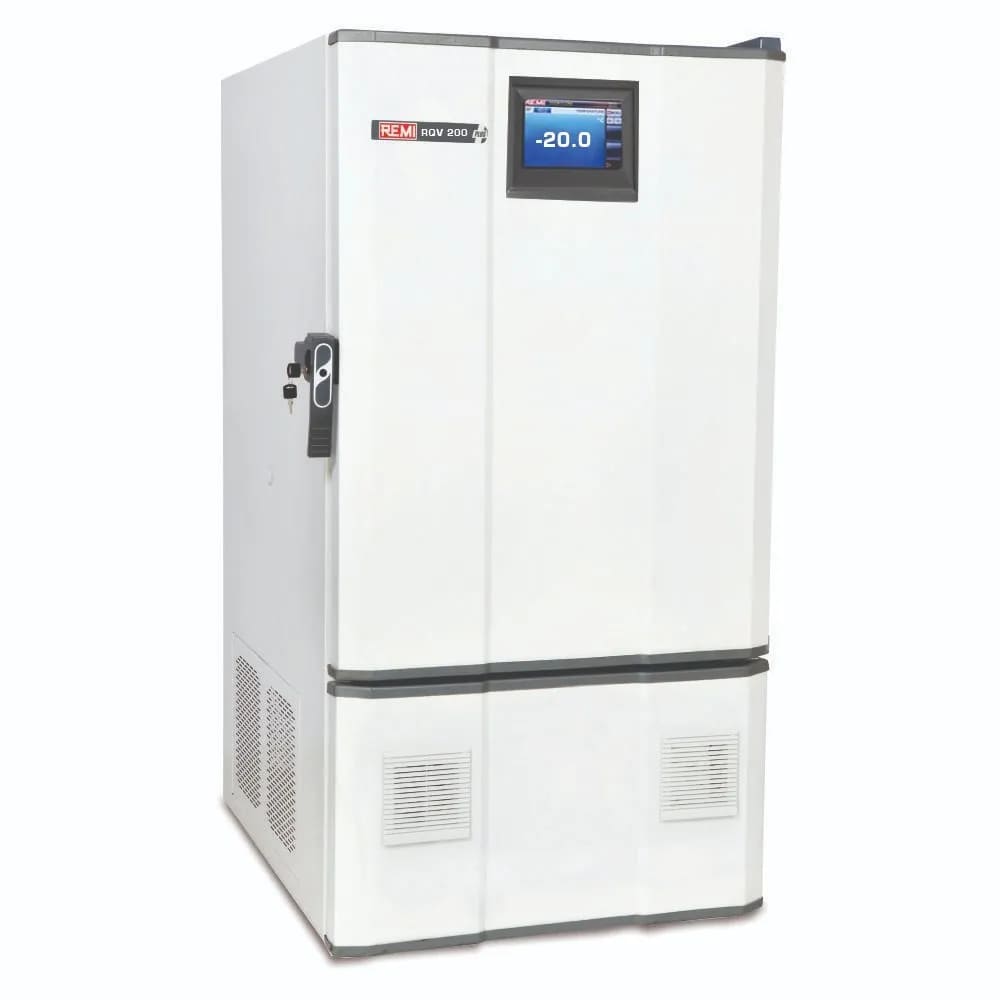

REMI Deep Freezer -20

Temperature up to -20°C (AC room)
Upright models with small foot prints
Unique design of thermal barrier for better energy efficiency
Machine filled CFC free PUF insulation to eliminate void pockets
Adjustable trays
Hermetically sealed Compressor with CFC free refrigerant
Alarms for high/low set parameters
Sensor failure alarm
Electrical circuit breaker
Time delay for compressor switch on
Overload cut off relay for compressor
Rounded inner chamber for easy cleaning
Attractive door profile
Microprocessor controller with LED display of Temperature with set, process value & audio visual alarm (standard)
Weight carrying capacity of each tray : 30 Kg Uniformly distributed
Auto door closer
Smart Handle with LED door closure indication

4 Inch attractive LCD display
Intelligent Controller helps maintain temperature in case of sensor failure
Battery Backup for Temperature Controller
Auto tuning of controller
Self-Diagnosis for errors
Histogram format of 24 hours temperature recording
Settable High / low alarm points
Memory for storage of upto 1000 records
Centronic interface to record Temperature, Date, & Time by attaching Dot Matrix printer with adjustable print interval
Alarm on equipment / output for remote alarm

7 inch big colour touch screen
PLC (Programable logic controller)
Memory of 15,000 records
Centronic interface to record Temperature, Date & Time by attaching Dot Matrix printer with adjustable print interval
Ethernet port
Battery backup in case of power failure for display, alarms & off-line data logging (optional)
Remi Datasoft Data acquisition software complying to 21 CFR part 11 as per USFDA Guidelines (optional)

Multiple level alpha numerical password with password ageing
Secured audit trail report
Alarm report with mention of alarm condition
Mean Kinetic Temperature able to be calculated for any days& alarm deviation report
Reports in graphical and tabular form
Data Stored in PC server with Lan connectivity and can be monitored on PC with password authentication
Multi chamber data acquisition on single software
Communication through RS 485 / TCP IP
GSM Mobile Alert for six Numbers
Power failure and resumption recorded with date and time

Data logger for 8 Point temperature recording with sensor printer interface and software
Software as per 21 CFR Part 11 requirements
PLC Based Control System with HMI Touch Screen
Biometrics Magnetic Door Access for Secured Door opening with software to maintain log
Validation (mapping) consist of one cycle for temperature at any one set point for 24 hours on empty and loaded condition
Standby Refrigeration System
GSM alert through SIM card

Technical Data
	RQV-200 Plus	RQV-300 Plus	RQV-400 Plus	RQV-500 Plus
Internal Volume (Liters)	200	300	400	500
Number of trays	2	3	4	5
Internal Dimensions W x D x H (mm)	640 x 755 x 430	640 x 755 x 630	640 x 755 x 830	640 x 755 x 1030
External Dimensions W x D x H (mm)	800 x 975 x 1020	800 x 975 x 1220	800 x 975 x 1420	800 x 975 x 1620
Minimum Temperature	-20°C
Insulation (CFC free polyurethane foam)	80 mm minimum for Body & 80 mm for Door
Temperature control	Microprocessor
Display	1″ – 7 Segment, Big Size LED
Power Failure Alarm	Visual Alarm
Door Open Alarm	Audio Alarm in case door open for over one minute
Illumination	No
Internal Body Material	Stainless Steel – 304 grade (Standard Models), Stainless Steel – 316 grade (GMP Models)
External Body Material	Powder Coated CRCA Steel (Standard Models), Stainless Steel – 304 grade (GMP Models)
Noise Level	Less Than 65 db(A)
Recommended Voltage Stabilizer	VS-02	VS-02	VS-03	VS-03
220-240 volts, 50Hz, Single Phase
