Product Details

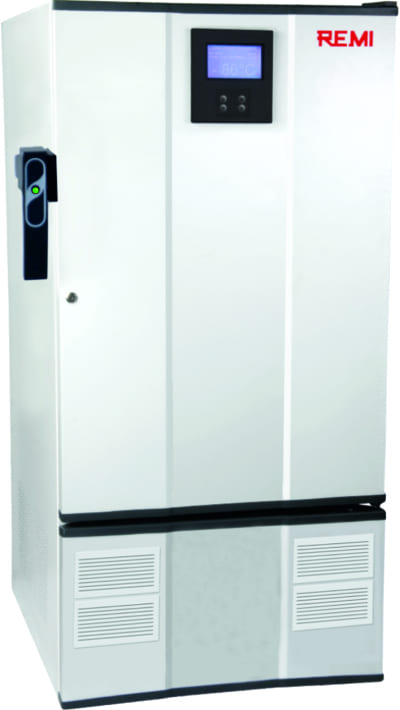

Ultra Low Deep Freezers -80 Degrees

Efficient CFC free insulation with high core density reduces temperature loss
Optimized compressor run ensures energy efficiency
Hot line across the door assembly to prevent frost formation
Efficient CFC free dual refrigeration system ensures fast temperature pull down
Quadruplicate step silicon rubber gasket for complete insulation
Independent internal foamed doors with plastic handle
Smart Handle with LED door closure indication
Port for calibration probes / safety back up
Audio Visual alarms for
- Temperature high / low
- Power failure
- Door Open
- Compressor on (only visual)
- Power on (only visual)
Settable points of
- Temperature high / low
- High / low temperature alarm point
Rounded inner chamber for easy cleaning
Attractive door profile
Weight carrying capacity of each tray : 30 Kg Uniformly
distributed
Vacuum Release Valve for easy door opening.

LCD DISPLAY

FEATURES

4 Inch attractive LCD display
Intelligent Controller helps maintain temperature in case of sensor failure
Battery Backup for Temperature Controller
Auto tuning of controller
Self-Diagnosis for errors
Histogram format of 24 hours temperature recording
Settable High / low alarm points
Memory for storage of upto 1000 records
Centronic interface to record Temperature, Date, & Time by attaching Dot Matrix printer with adjustable print interval
Alarm on equipment / output for remote alarm

TOUCH SCREEN DISPLAY

FEATURES

7 inch big colour touch screen
PLC (Programable logic controller)
Standby refrigeration (optional)
Memory of 1500 records
Centronic interface to record Temperature, Date & Time by attaching Dot Matrix printer with adjustable print interval
Ethernet port
Remi “Datasoft” Data acquisition software complying to 21 CFR part 11 as per USFDA Guidelines (optional)

REMI ‘DATA SOFT’

FEATURES

Multiple level alpha numerical password with password ageing
Secured audit trail report
Alarm report with mention of alarm condition
Mean Kinetic Temperature able to be calculated for any days& alarm deviation report
Reports in graphical and tabular form
Data Stored in PC server with Lan connectivity and can be monitored on PC with password authentication
Multi chamber data acquisition on single software
Communication through RS 485 / TCP IP
GSM Mobile Alert for six Numbers
Power failure and resumption recorded with date and time

OPTIONAL ACCESSORIES

TO BE ORDERED SEPARATELY

Data logger for 8 Point temperature recording with sensor printer interface and software
Seven days circular chart recorder
Software as per 21 CFR Part 11 requirements
PLC Based Control System with HMI Touch Screen
Biometrics Magnetic Door Access for Secured Door opening with software to maintain log
Validation (mapping) consist of one cycle for temperature at any one set point for 24 hours on empty and loaded condition
GSM alert through SIM card

Particulars	ULT-90	ULT-185	ULT-360
Technical Data
Internal Volume(Liters)	90	185	360
No. of trays	2	3	6
No. of Internal Door	1	2	4
Internal Dimension W x D x H (mm)	400 x 400 x 580	510 x 510 x 730	700 x 510 x 1000
External Dimension W x D x H (mm)	711 x 877 x 1405	820 x 987 x 1560	1010 x 987 x 1830
Operating Temperature Range	-45°C to -86°C
Insulation (CFC free polyurethane foam)	Body : 150 mm sides, 300 mm Back, Door : 110 mm
Temperature Control	Microprocessor with PT-100 sensor
Display	4″ LCD
Power Failure Alarm	Audio Visual Alarm
Door Open Alarm	Audio Visual Alarm in case door open for over one minute
Inner Body Material	S.S. 304 (AISI Grade, Non Corrosive, Non Magnetic)
External Body Material	Powder Coated CRCA Steel
Noise Level	Less Than 65 db(A)
Battery Backup	Rechargeable, Back Up 8 hrs (for alarm system & temperature recorder)
Recommended Voltage Stablizer	VS 05	VS06	VS07
Electrical	220-240 volts, 50 Hz, SINGLE PHASE
