Product Details

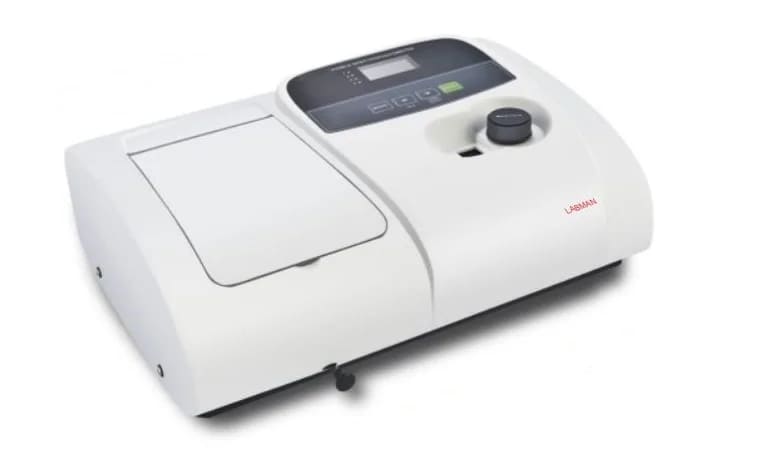

Visible Spectrophotometer LMSPV320

	MICROPROCESSOR CONTROLLED Microprocessor controlled, LMSPV320 can realize auto Zero and auto 100% T adjustment with one push-button. LMSPV320 has a LCD display for direct readout of Transmittance, Absorption, and Concentration.

	GRATING MONOCHROMATOR LMSPV320 uses 1200 line grating which ensures high resolution, low stray light and parameters accuracy.

	DATA OUTPUT LMSPV320 is equipped with USB port which can be connected to PC to edit data through specific software (Optional) Data can also be printed through a parallel port connected to a micro printer.

	COMPACT DESIGN, EASY TO CARRY The compact design of LMSPV320 saves bench space while all components function remain performed like 120mm wide sample compartment and long optical path monochromator.

	DISPLAY MODE LMSPV320 can display absorption, transmittance, concentration and coefficient directly by different mode switching. results on the screen.

	Large sample compartment, it can accommodate 5-100mm path length cuvettes with optional holders

	MICROPROCESSOR CONTROLLED Microprocessor controlled, LMSPV320 can realize auto Zero and auto 100% T adjustment with one push-button. LMSPV320 has a LCD display for direct readout of Transmittance, Absorption, and Concentration.

	GRATING MONOCHROMATOR LMSPV320 uses 1200 line grating which ensures high resolution, low stray light and parameters accuracy.

	DATA OUTPUT LMSPV320 is equipped with USB port which can be connected to PC to edit data through specific software (Optional) Data can also be printed through a parallel port connected to a micro printer.

	COMPACT DESIGN, EASY TO CARRY The compact design of LMSPV320 saves bench space while all components function remain performed like 120mm wide sample compartment and long optical path monochromator.

	DISPLAY MODE LMSPV320 can display absorption, transmittance, concentration and coefficient directly by different mode switching. results on the screen.

	Large sample compartment, it can accommodate 5-100mm path length cuvettes with optional holders

MODEL	LMSPUV1200
Make	LABMAN
Optical System	Single Beam, Grating 1200 lines/mm
Wavelength Range	325-1000nm
Spectral Bandwidth	4nm
Wavelength Accuracy	2nm
Wavelength Repeatability	1nm
Photometric Accuracy	0.5%T
Photometric Repeatability	0.3%T
Photometric Range	-0.3-3A,0-200%T
Photometric Mode	T.A.C.F
Stray Light	0.3%T
Stability	0.002A/h
Display	LCD
Detector	Silicon Photodiode
Output	USB Port & Parallel Port(Printer)
Light Source	Tungsten Halogen Lamp
Power Supply	AC 220V/50Hz
Dimension (LxWxH) mm	420x280x180mm
Weight	8kg
