Product Details

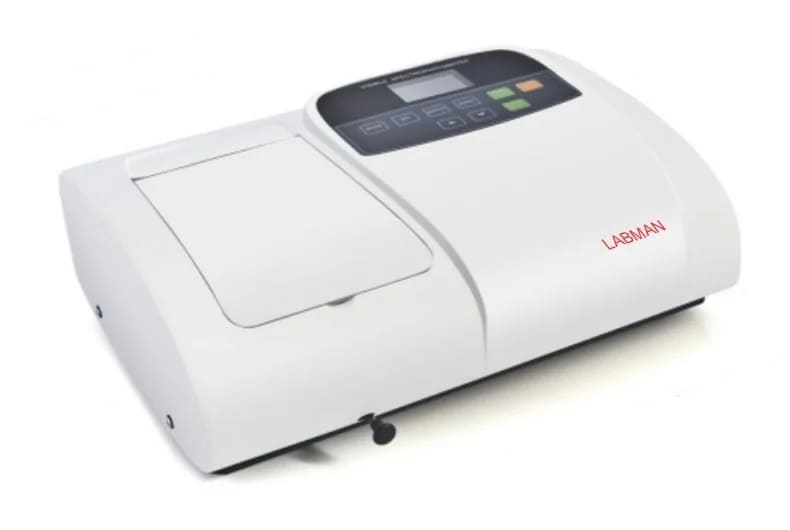

Visible Spectrophotometer LMSPV325
- Product ID:
- Category: Spectrophotometer
 |
MULTIPLE RESULTS READOUT
Can display wavelength, absorption and transmittance with 5 results per screen. It also has a memory store of up to 200 results. |
|
|
8MM THICK OPTICAL BASE
The instruments use a rigid die-cast aluminum base as its optical mount to ensure instrument stability and reliability |
|
|
AUTO SETTING WAVELENGTH
Users set wavelength automatically through arrow keys to avoid operation errors |
|
|
STANDARD CURVE
Can set up various standard curves according to customer’s solutions and find the concentration of unknown solutions |
|
|
DATA OUTPUT
LMSPV325 is equipped with USB port to connect with a PC to display spectrum scanning, kinetics and multi wavelength testing results on the screen. |
|
|
2.5 LCD SCREEN
Equipped with a 2.5 LCD screen to give a clear display of standard curves and groups of results. |
|
|
MULTIPLE RESULTS READOUT
Can display wavelength, absorption and transmittance with 5 results per screen. It also has a memory store of up to 200 results. |
|
|
8MM THICK OPTICAL BASE
The instruments use a rigid die-cast aluminum base as its optical mount to ensure instrument stability and reliability |
|
|
AUTO SETTING WAVELENGTH
Users set wavelength automatically through arrow keys to avoid operation errors |
|
|
STANDARD CURVE
Can set up various standard curves according to customer’s solutions and find the concentration of unknown solutions |
|
|
DATA OUTPUT
LMSPV325 is equipped with USB port to connect with a PC to display spectrum scanning, kinetics and multi wavelength testing results on the screen. |
|
|
2.5 LCD SCREEN
Equipped with a 2.5 LCD screen to give a clear display of standard curves and groups of results. |
|
MODEL
|
LMSPUV1200
|
|||
|
Make
|
LABMAN
|
|||
|
Optical System
|
Single beam, Grating 1200 lines/mm
|
|||
|
Wavelength Range
|
325-1000nm
|
|||
|
Bandwidth
|
4nm
|
|||
|
Wavelength Accuracy
|
 1nm |
|||
|
Wavelength Repeatability
|
0.5nm |
|||
|
Wavelength Setting
|
Auto
|
|||
|
Photometric Accuracy
|
0.5%T |
|||
|
Photometric Repeatability
|
0.3%T |
|||
|
Photometric Range
|
-0.3-3A,0-200%T |
|||
|
Stray Light
|
 0.3%T |
|||
|
Stability
|
0.002A/h @ 500nm
|
|||
|
Display
|
LCD
|
|||
|
Detector
|
Silicon Photodiode
|
|||
|
Standard Cell Holder
|
4-position 10mm cell holder
|
|||
|
Light Source
|
Tungsten Lamp
|
|||
|
Output
|
USB Port & Parallel Port(Printer)
|
|||
|
Power Supply
|
AC 220V/50Hz
|
|||
|
Dimension (LxWxH) mm
|
420x280x180
|
|||
|
Weight
|
10kg
|
|||
